厂家批发 RY-300A高精度电脑剥线机 超细剥线机

厂家批发 RY-300A高精度电脑剥线机 超细剥线机

价    格

订货量

  • 1.1万

    1 - 4

  • 1.08万 价格为商家提供的参考价,请通过"获取最低报价"
    获得您最满意的心理价位~

    ≥5

袁先生
手机已验证
𐁮𐁯𐁰****𐁳𐁵𐁮𐁯
微信在线
  • 发货地:福建 厦门
  • 发货期限:不限
厦门瑞扬工贸有限公司 入驻平台 第11
  • 资质核验已核验企业营业执照
  • 袁先生
    手机已验证
  • 福建 厦门
  • 自动化端子机,切管机,压着机,剥线机

联系方式

  • 联系人:
    袁先生
  • 地   址:
    福建 厦门 同安区 建材元五金机电87号2楼
加工定制:是类型:电脑剥线机品牌:瑞扬
型号:RY-300A最小裁线长度:0.5(mm) mm最大裁线长度:9999.99(mm) mm
电源电压:220(V) V剥线范围:AWG18-36(m㎡) m㎡功率:260(W) W
外形尺寸:418*358*308(mm) mm重量:25(kg) kg规格:RY-300A

*************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************

undefined

undefined

undefined

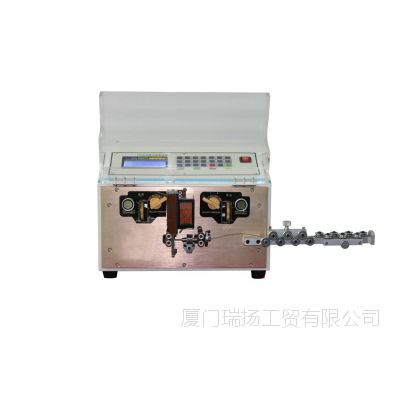

RY-300A高精度电脑剥线机(细线型)

undefined

undefined



产品说明



特点说明(Characteristic description)

本机电脑控制,按键操作,高速剥线在裁剥范围内可任意设定线长,线头,线尾及剥线长度,有扎量、延时等功能,性能稳定操作方便,低噪音,裁线***无损伤,是加工细线、短线的专用设备,可加工AWG36线材,是目前国内加工最细导线的电脑剥线机,对两轮的压力间隙采用细分微调,可***到0.05MM,以***每条线的加工精度,减轻导线外皮压纹,使加工后的线束更加***。This aircraft computer control, the pressed key operation, the high speed exhausted line in cuts in the exhausted scope to be possible to suppose the siting to be long willfully, the end, the line tail and the exhausted line length, have grip functions and so on quantity, time delay, the stable property ease of operation, the low noise, cuts the line not to have the damage precisely, is the processing fine lace, the short line special purpose equipment, may process the AWG36 wire rod, is the present domestic processing thinnest wire computer exhausted line machine, uses to two round pressure gap subdivides the trimming, but arrives at 0.05MM precisely, guaranteed that each line the working accuracy, reduces the wire sheath embossing, after causing the processing the group of lines is more perfect.

机型规格Model specification

型号Model

RY-300A

外形尺寸Dimensions

L418*W358*H308

重量Weight

25KG

显示方式Display

中文,液晶

Chinese interface LCD display or English interface

电源Power

220V/260W

切割长度(mm)Cutting Length

0.1m-99999.99mm

剥皮长度Stripping Length

0.1m-13mm

剥线范围Cutting Range

AWG18-36

导线类型Wire Material

PVC、铁氟龙线、玻璃线、

PVC and ferromolybdenum fluorine Long Xian, glass wire

切割公差Cutting tolerance

Within 0.002 x Lmm ※ L=cutting length

导管直径Max. wire diam

1-4.5mm

驱动方式Driving way

四轮驱动,,独立驱动盒驱动Four-wheel drive, independent drive box driver

生产率(次/分)Productivity(pcs/m)

90PCS/分
